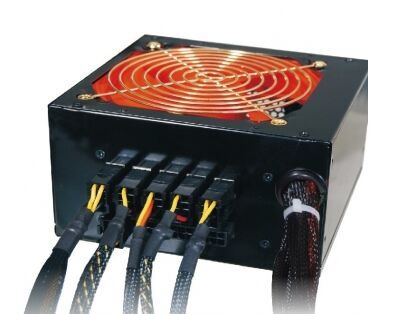

Passive PFC Series LWP- PPFC 500wModular Power Supply, Thermal control, High Efficiency over 80%, Standby output less than 1W, Excellent durability and stability, Six kinds of protection
|
¡¡
Features
|
AC Input Range |
Voltage |
115 or 230VAC |
|||
|
Frequency |
50Hz ~ 60Hz |
||||
|
DC Output Voltage Regulation |
Vout |
Regulation Range |
Operation Temperature |
0 ~ +40¡æ |
|
|
+3.3VDC |
¡À5% |
+3.14 ~ +3.47V |
Storage Temperature |
-20 ~ +70¡æ |
|
|
+5VDC |
¡À5% |
+4.75 ~ +5.25V |
Operation Humidity |
5% ~ 95% RH |
|
|
+12VDC |
¡À5% |
+11.4 ~ +12.6V |
Storage Humidity |
5% ~ 95% RH |
|
|
-12VDC |
¡À10% |
-10.8 ~ -13.0V |
Dimensions |
158(L) * 150(W) * 86(H)mm |
|
|
+5VSB |
¡À5% |
+4.75 ~ +5.25V |
Protections |
||
|
DC Output Ripple & Noise |
|
Regulation Range |
Over-Voltage Protection (OVP) |
||
|
+3.3VDC |
80mV |
Under Voltage Protection (UVP) |
|||
|
+5VDC |
80mV |
Over Current Protection (OCP) |
|||
|
+12VDC |
120mV |
Under Current Protection (UCP) |
|||
|
-12VDC |
120mV |
Over-Power Protection (OPP) |
|||
|
+5VSB |
80mV |
Short- Cicuit Protection (SCP) |
|||
