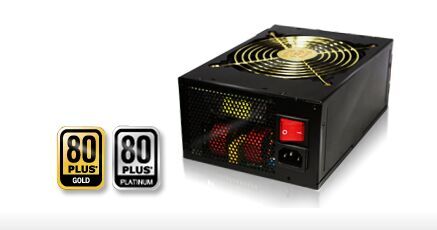

EPS12V PUO Series项目内容
|
Introduction
| Complies With The Latest Intel | EPS12V | |||||
| Model | PUO Series | |||||
| Dimension | V:150*200*86mm (14cm Fan) | |||||
| Protection | OCP/OVP/UVP/OPP/SCP/OTP | |||||
| Meet Eup Requirements | 2010 | |||||
| Efficiency | 1050W/1350W/1450W 80 Plus(Gold) 1250W 80 Plus(Platinum) | |||||
| AC INPUT | 100V~240V(1050W~1250W) 115V~230V(1350W~1450W) | |||||
| Input Frequency | 47Hz~ 63 Hz | |||||
| Active PFC | Power Factor : >0.9 | |||||
| Output Power | 1050W | |||||
| Voltage | +12V1 | +12V2 | +3.3V | +5V | +5VSB | -12V |
| Max Load | 40A | 60A | 25A | 25A | 4A | 0.8A |
| Combined Power | 480W | 720W | 150W | 20W | 9.6W | |
| Output Power | 1250W | |||||
| Voltage | +12V1 | +12V2 | +3.3V | +5V | +5VSB | -12V |
| Max Load | 45A | 65A | 25A | 25A | 4A | 0.8A |
| Combined Power | 540W | 780W | 150W | 20W | 9.6W | |
| Output Power | 1350W | |||||
| Voltage | +12V1 | +12V2 | +3.3V | +5V | +5VSB | -12V |
| Max Load | 50A | 70A | 25A | 25A | 4A | 0.8A |
| Combined Power | 600W | 840W | 150W | 20W | 9.6W | |
| Output Power | 1450W | |||||
| Voltage | +12V1 | +12V2 | +3.3V | +5V | +5VSB | -12V |
| Max Load | 55A | 75A | 25A | 25A | 4A | 0.8A |
| Combined Power | 660W | 900W | 150W | 20W | 9.6W | |
