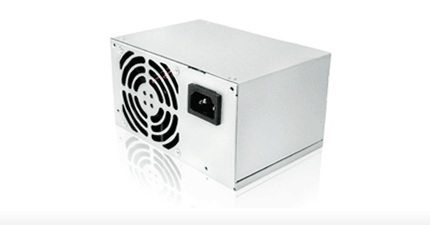

PS3 Power GPE (P) Series项目内容
|
Introduction
| Complies With The Latest Intel | PS3 Power | ||||
| Model | GPE (P) Series | ||||
| Dimension | 150*100*85mm (8cm Fan) | ||||
| Protection | OVP/UVP/OPP/SCP | ||||
| Meet Eup Requirements | N/A | ||||
| Efficiency | 120W / 160W / 180W / 200W / 250W / 300W ( 72% ) | ||||
| AC INPUT | 230V Only | ||||
| Input Frequency | 47Hz~ 63 Hz | ||||
| Active PFC | Power Factor : >0.9 | ||||
| Output Power | 120W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 9A | 17A | 10A | 2.5A | 0.3A |
| Combined Power | 108W | 70W | 12.5W | 3.6W | |
| Output Power | 160W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 10A | 13A | 10A | 2.5A | 0.3A |
| Combined Power | 120W | 75W | 12.5W | 3.6W | |
| Output Power | 180W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 12A | 14A | 12A | 2.5A | 0.3A |
| Combined Power | 144W | 80W | 12.5W | 3.6W | |
| Output Power | 200W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 14A | 16A | 14A | 2.5A | 0.3A |
| Combined Power | 168W | 90W | 12.5W | 3.6W | |
| Output Power | 250W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 16A | 17A | 14A | 2.5A | 0.3A |
| Combined Power | 192W | 100W | 12.5W | 3.6W | |
| Output Power | 300W | ||||
| Voltage | +12V | +3.3V | +5V | +5VSB | -12V |
| Max Load | 19A | 21A | 16A | 2.5A | 0.3A |
| Combined Power | 228W | 110W | 12.5W | 3.6W | |
