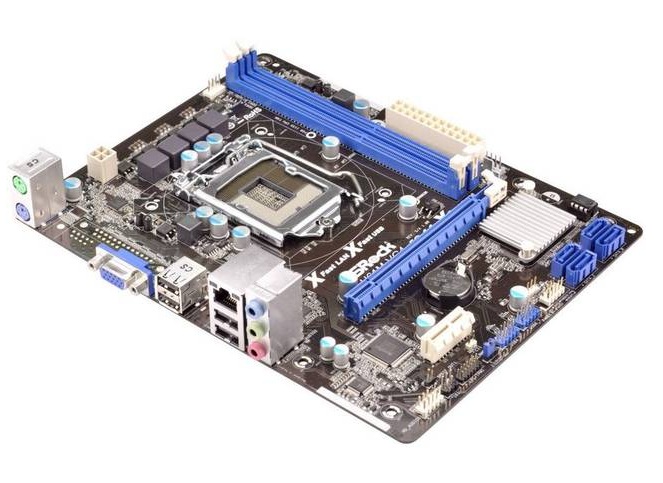

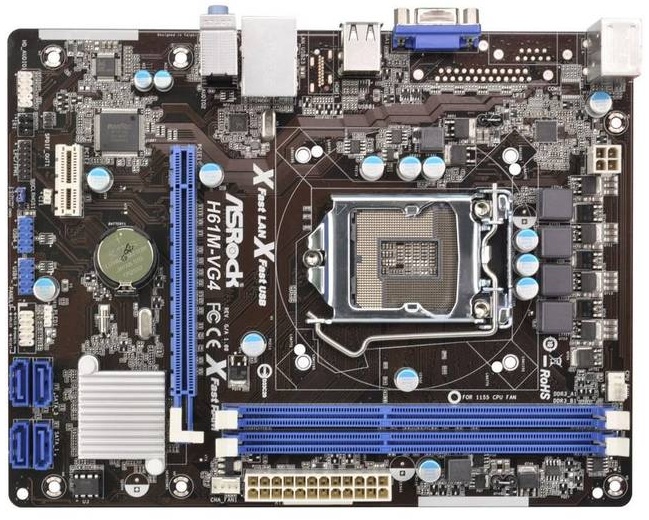

ASRock H61M-VG4 MicroATX Motherboard
|
Introduction
| Mfr Part Number: H61M-VG4 |
| CPU: LGA1155 |
| Supports 3rd and 2nd Generation Intel Core i7/ i5/ i3/ Xeon/ Pentium/ Celeron/ Processors |
| Supports Intel Turbo Boost 2.0 Technology |
| Supports Intel K-Series CPU |
| Supports Hyper-Threading Technology |
| Chipset: Intel H61 |
| Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot |
| SATA: 4x SATA2 Ports |
| Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC |
| Video: Intel HD Graphics 2500/4000 w/ Intel Ivy Bridge CPU, Maximum Shared Memory of 1760MB and Intel HD Graphics 2000/3000 w/ Intel Sandy Bridge CPU, Maximum Shared Memory of 1759MB |
| LAN: Realtek RTL8111E PCI-Express x1 Gigabit Ethernet Controller |

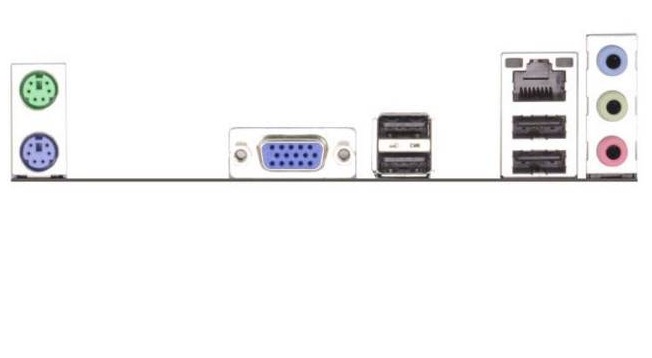

| Ports: 4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector |
| Form Factor: MicroATX |
