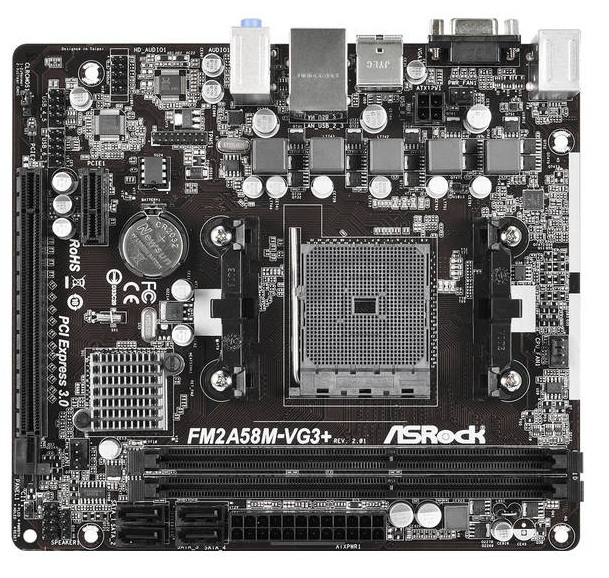

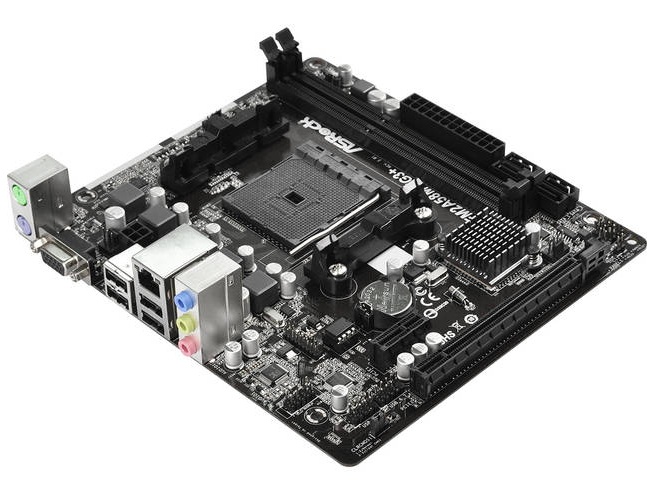

ASRock FM2A58M-VG3+ MicroATX Motherboard
|
Introduction
| Mfr Part Number: FM2A58M-VG3+ R2.0 |
| CPU: Socket FM2+ |
| Supports Socket FM2+ 95W / FM2 100W Processors |
| Chipset: AMD A58 FCH (Bolton-D2) |
| Memory: 2x DDR3-2400+(OC)/ 2133/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot |
| SATA: 4x SATA2 Ports, Support RAID 0, 1, 10 |
| Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC |
| Video: Integrated AMD Radeon R7/R5 Series Graphics in A-Series APU w/ 2GB Max Shared Memory |
| LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller |

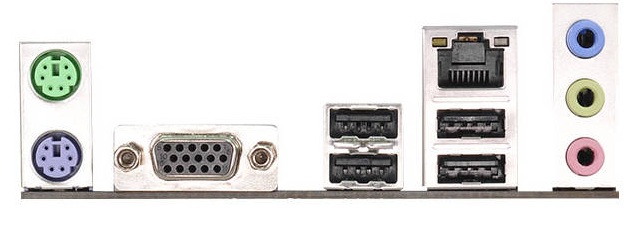

| Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector |
| Form Factor: MicroATX, 7.5 x 6.7 inch / 19.1 x 17.0 cm |
