MSI A68HM-E33 MicroATX Motherboard
|
Introduction
| Mfr Part Number: A68HM-E33 V2 |
| CPU: Socket FM2+ |
| Supports FM2+ Socket for AMD A-series/ Athlon Series Processors |
| Chipset: AMD A68H |
| Memory: 2x DDR3-2133(OC)/ 1866/ 1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot |
| SATA: 4x SATA3 Ports, Support RAID 0, 1, 10 |
| Audio: Realtek ALC887 Audio CODEC |
| LAN: Realtek RTL8111G Gigabit Ethernet Controller |

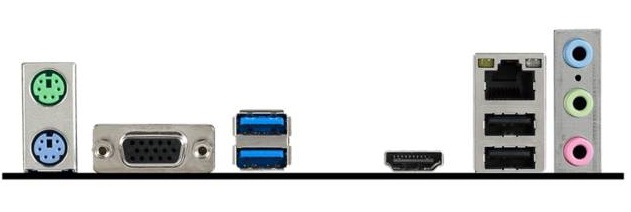

| Ports: 2x USB 3.0 Ports (rear), 6x USB 2.0 Ports (2 rear, 4 via header), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Main Power Connector, 1x 4pin ATX 12V Power Connector |
| Form Factor: MicroATX, 22.6 x 17.3 cm |
