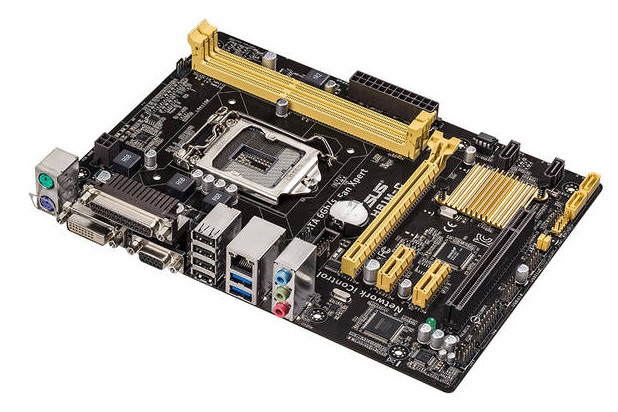

Asus H81M-C MicroATX Motherboard
|
Introduction
| Mfr Part Number: H81M-C/CSM/SI |
| CPU: LGA1150 |
| Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors |
| Supports Intel 22nm CPU |
| Supports Intel Turbo Boost Technology 2.0 |
| Chipset: Intel H81 |
| Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Max Capacity of 16GB |
| Slots: 1x PCI-Express 2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot |
| SATA: 2x SATA3 Ports, 2x SATA2 Ports |
| Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC |
| LAN: Realtek RTL8111G Gigabit Ethernet Controller |

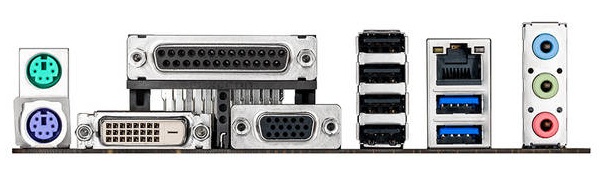

| Ports: 2x USB 3.0 Ports, 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x Parallel Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector |
| Form Factor: MicroATX, 9.6 x 7.0 inch / 24.4 x 17.8 cm |
