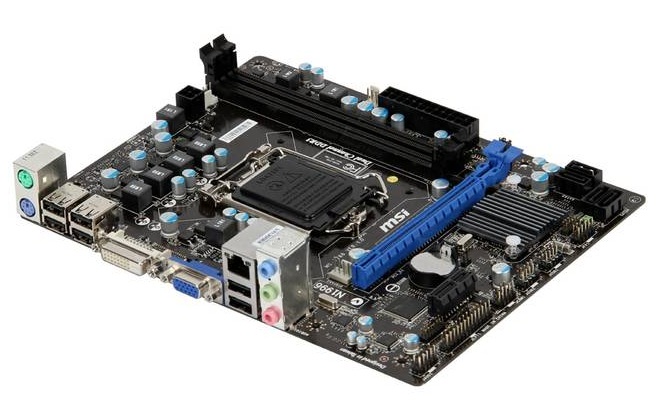

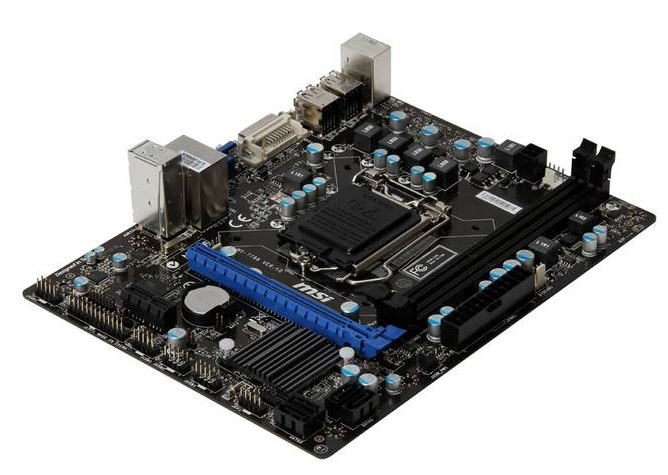

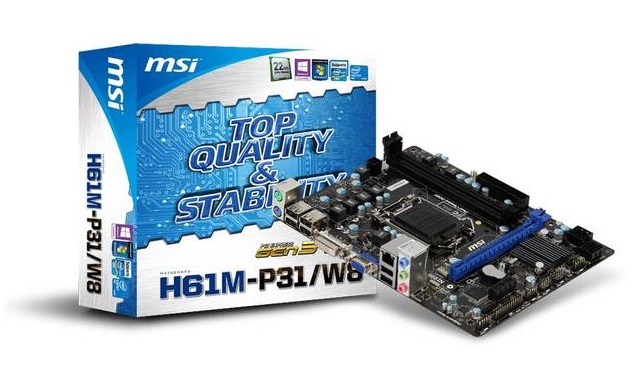

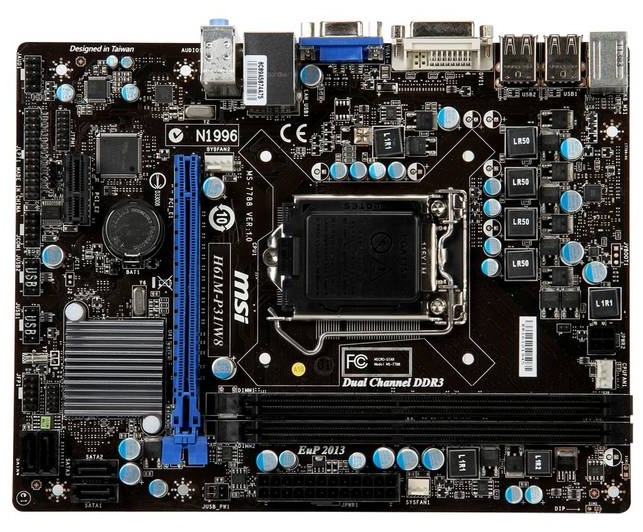

MSI H61M-P31 (W8) MicroATX Motherboard
|
Introduction
| Mfr Part Number: H61M-P31 (W8) |
| CPU: LGA1155 |
| Supports 3rd Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors |
| Chipset: Intel H61 (B3) |
| Memory: 2x DDR3-1333/1066 DIMM Slots, Dual Channel, Unbuffered, Max Capacity of 16GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot |
| SATA: 4x SATA2 Ports |
| Audio: Realtek ALC887 Flexible 8-Channel Audio CODEC w/ Jack Sensing |
| LAN: Realtek 8111E PCI-Express Gigabit Ethernet Controller |

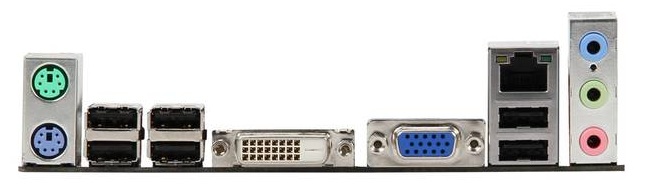

| Ports: 10x USB 2.0 Ports (6 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Power Connector, 1x 4pin ATX 12V Power Connector |
| Form Factor: MicroATX, 22.6 x 17.3 cm |
