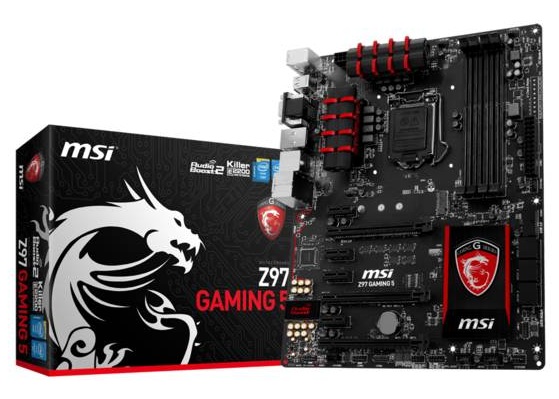

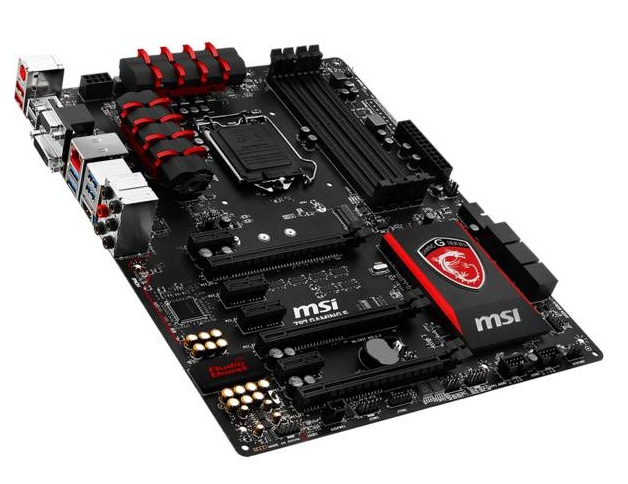

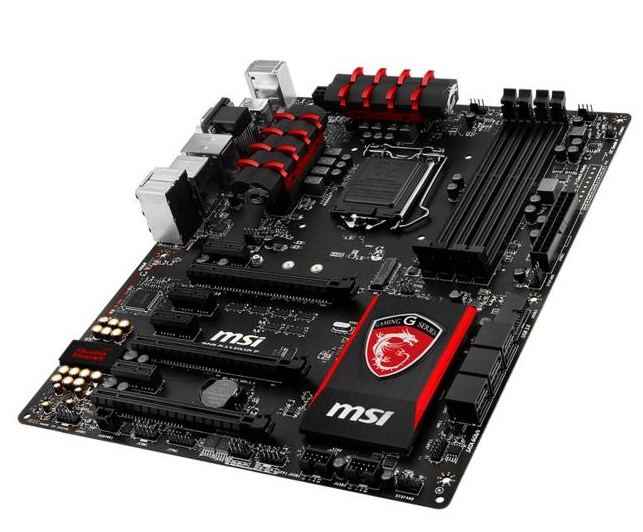

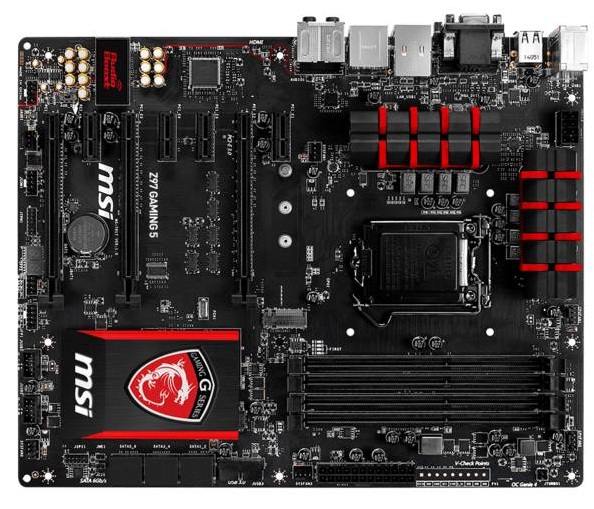

MSI Z97-GAMING 5 ATX Motherboard
|
Introduction
| Mfr Part Number: Z97-GAMING 5 |
| CPU: LGA1150 |
| Supports 5th/4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors |
| FSB/BCLK/Hyper Transport Bus 100MHz |
| Chipset: Intel Z97 Express |
| Memory: 4x DDR3-3300(OC)/ 3200/ 3100/ 3000/ 2800/ 2666/ 2600/ 2400/ 2200/ 2133/ 2000/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB |
| Slots: 3x PCI-Express 3.0 x16 Slots (x16, x8/x8, x8/x4/x4), 4x PCI-Express 2.0 x1 Slots |
| Multi-Graphics: Supports AMD 3-Way CrossFireX and NVIDIA 2-Way SLI Technology |
| Storage: |
| SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10 |
| M.2: 1x M.2 Port, Support both SATA & PCI-Express & 4.2/6/8cm Length Mode |
| Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC |
| LAN: Killer E2205 Gigabit Ethernet Controller |

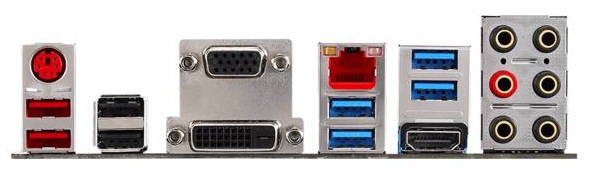

| Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector |
| Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm |
