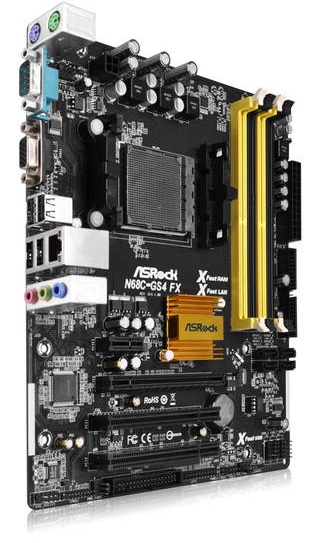

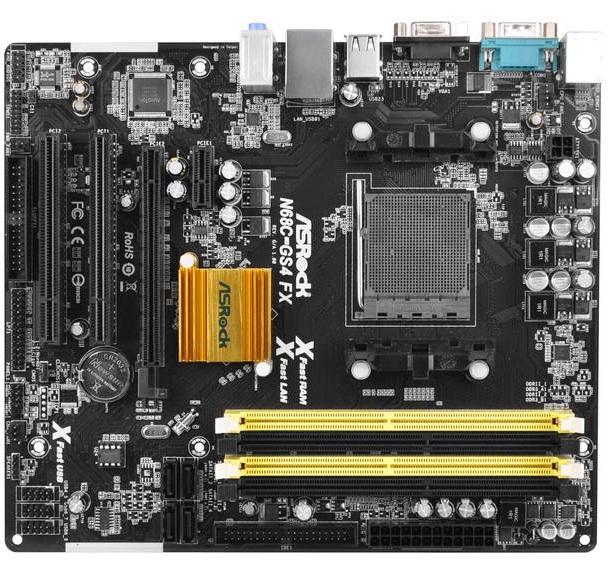

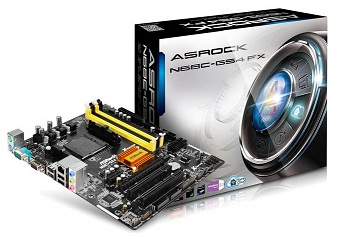

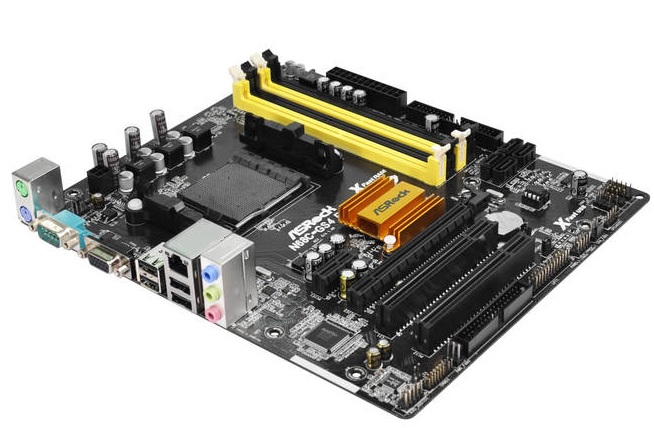

ASROCK N68C-GS4 FX Socket AM3+ MicroATX Motherboard
|
Introduction
| Mfr Part Number: N68C-GS4 FX |
| CPU: Socket AM3+ |
| Support up to Socket AM3+ processors |
| Support up to Socket AM3 processors - AMD Phenom II X6/ X4/ X3/ X2 (except 920/ 940) / Athlon II X4/ X3/ X2/ Sempron Processors |
| Support up to Socket AM2+ / AM2 processors - AMD Phenom FX/ Phenom/ Athlon 64 FX/ Athlon 64 X2 Dual-Core/ Athlon X2 Dual-Core/ Athlon 64/ Sempron processors |
| Supports 8-Core CPU |
| Supports UCC Feature (Unlock CPU Core) |
| Supports AMD's Cool 'n' Quiet Technology |
| Supports Untied Overclocking Technology |
| Supports Hyper-Transport Technology |
| FSB 1000 MHz (2.0 GT/s) |
| Supports CPU up to 95W |
| Chipset: North Bridge NVIDIA GeForce 7025 & South Bridge nForce 630a |
| Memory: |
| 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB |
| 2x DDR2-1066/ 800/ 667/ 533 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 8GB |
| Slots: 1x PCI-Express x16 Slot, 1x PCI-Express x1 Slot, 2x PCI Slots |
| SATA: 4x SATA2 Ports, Support RAID 0, 1, 0+1, 5, JBOD |
| IDE: 1x ATA133 IDE Connector (supports 2x IDE devices) |
| Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC |
| Video: Integrated NVIDIA GeForce 7025 Graphics w/ Max. Shared Memory 256MB |
| LAN: Qualcomm Atheros AR8171 PCI-Express x1 Gigabit Ethernet Controller |

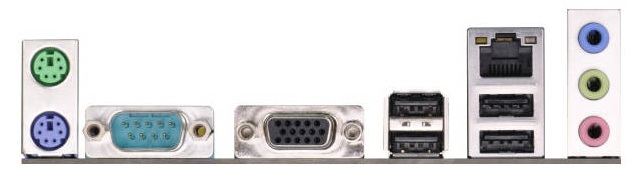

| Ports: 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x Serial Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector |
| Form Factor: MicroATX |
