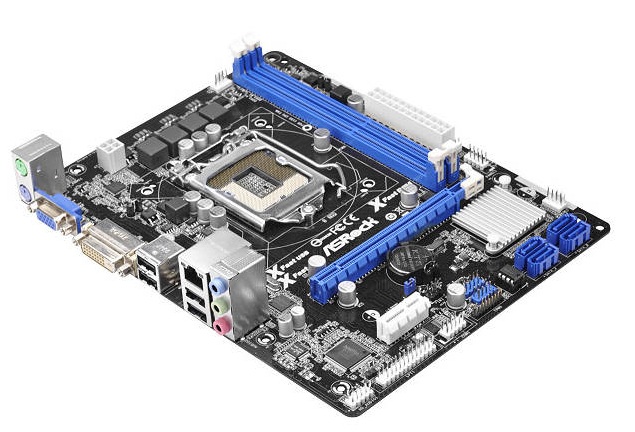

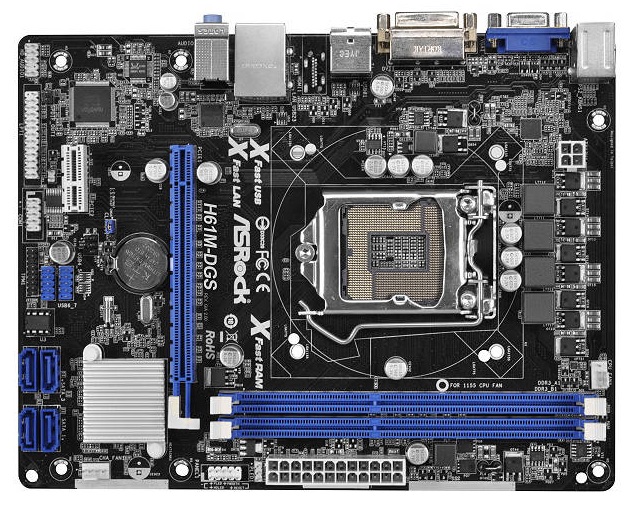

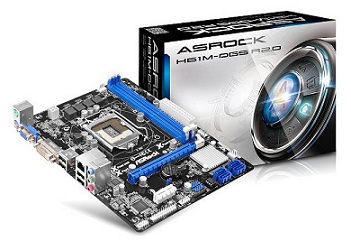

ASRock H61M-DGS R2.0 MicroATX Motherboard
|
Introduction
| Mfr Part Number: H61M-DGS R2.0 |
| CPU: LGA1155 |
| Supports 2rd and 3nd Generation Intel Core i7/ i5/ i3/ Xeon/ Pentium/ Celeron Processors |
| Supports Intel Turbo Boost 2.0 Technology |
| Supports Intel K-Series CPU |
| Supports Hyper-Threading Technology |
| Chipset: Intel H61 |
| Memory: 2x DDR3 1600/1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered memory, Max Capacity of 16GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot |
| SATA: 4x SATA2 Ports |
| Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC |
| Video: Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU, Max Shared Memory of 1760MB; Intel HD Graphics 2000/3000 with Intel Sandy Bridge CPU, Max Shared Memory of 1759MB |
| LAN: Realtek RTL8111C Gigabit Ethernet Controller |

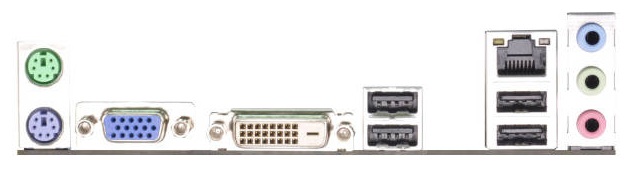

| Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboad Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector |
| Form Factor: MicroATX |
