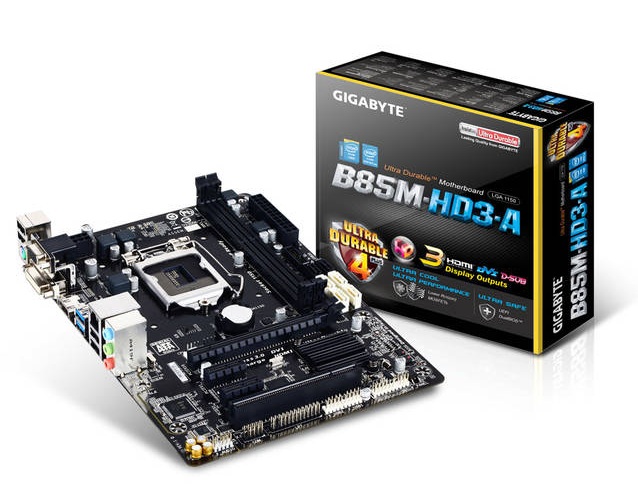

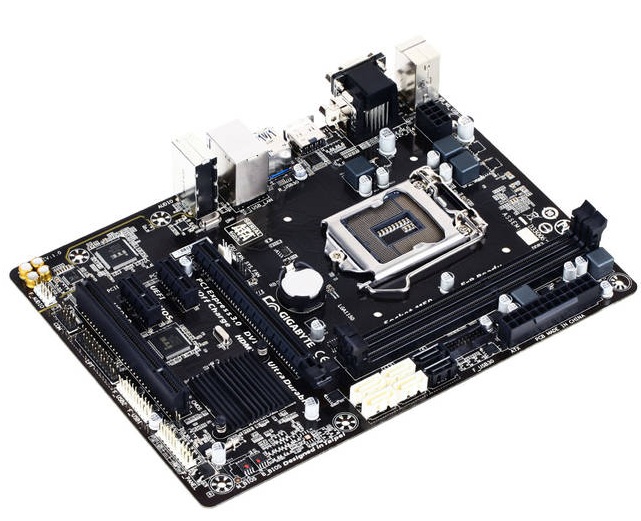

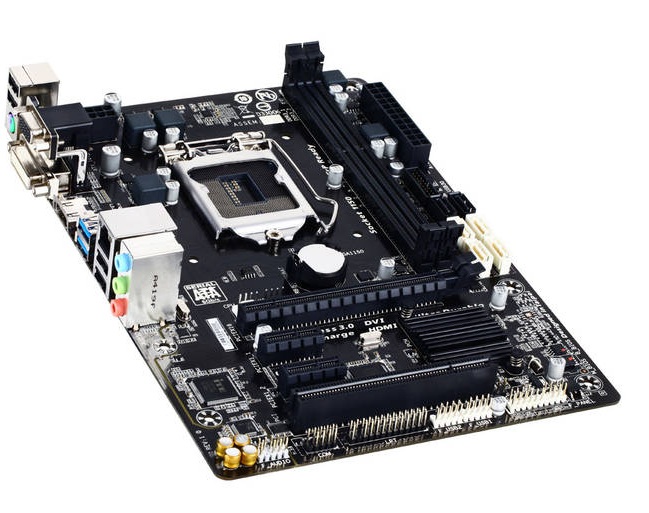

GIGABYTE GA-B85M-HD3-A MicroATX Motherboard
|
Introduction
| Mfr Part Number: GA-B85M-HD3-A |
| CPU: LGA1150 |
| Supports Intel Core i7/ i5/ i3, Pentium, Celeron Processors |
| Chipset: Intel B85 Express |
| Memory: 2x DDR3-1600/1333 DIMM Slots, Dual Channel, non-ECC, Max Capacity of 16GB |
| Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot |
| SATA: 4x SATA3 Ports, 2x SATA2 Ports |
| Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC |
| LAN: Realtek Gigabit Ethernet Controller |

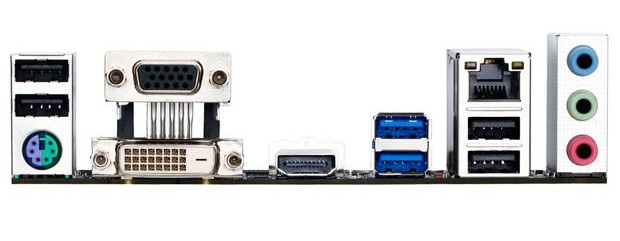

| Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks |
| Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector |
| Form Factor: MicroATX, 24.4 x 17.4 cm |
